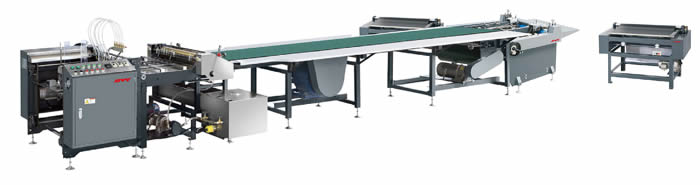

Semi Automatic Book Case Making Machine
The semi automatic book case making machine can efficiently make high quality book case, loose-leaf book, folder, game paper, account book, calendar, diary, photo album, and upscale gift box like cigarette case, wine box, cell phone box, tea box, moon cake box, etc.
The semi automatic book case making machine adopts automatic single sheet feeding and can accommodate paper in various sizes. It uses magnetic suction side board to fasten paper pile, which is flexible and stable. Due to the ball design of conveyor, the paper is fed smoothly and stably without skew. Moreover, the adjustable gluing roller ensures that glue can be uniformly applied to the paper surface. The circular trough, along with temperature control system, can guarantee appropriate viscosity of glue. Thanks to the built-in cleaning system, now cleaning can be finished in five minutes. What's more, the induced draft system, attached to conveyer belt, makes sure that paper will stick to the conveyer belt steadily.
| Model | ZFJ-600A | ZFJ-700A | ZFJ-800A |
| Paper thickness | 80-200 g | 80-200 g | 80-200 g |
| Max. paper width | 650 mm | 750 mm | 850 mm |
| Paper length | 100-2000 mm | 100-2000 mm | 100-2000 mm |
| Speed | 0-40 pcs/minute | 0-40 pcs/minute | 0-40 pcs/minute |
| Power | 9 kW/380V | 9 kW/380V | 9 kW/380V |
| Size | 8200*1350*1250 mm | 8200*1450*1250 mm | 8200*1550*1250 mm |
| Weight | 850 kg | 1150 kg | 1300 kg |
As a China semi automatic book case making machine (feeding paper by feeder) manufacturer, we also offer adjustable speed paper up gluing machine, cardboard slitting machine, rigid box folding machine, book cover making machine, and more.
