Forming and folding mechanism adopts mechanical and electrical pneumatic to solve the whole folding ear, middle folding ear.
Forming and folding mechanism adopt mechanical and pneumatic together to achieve full fold into the high-end 60mm

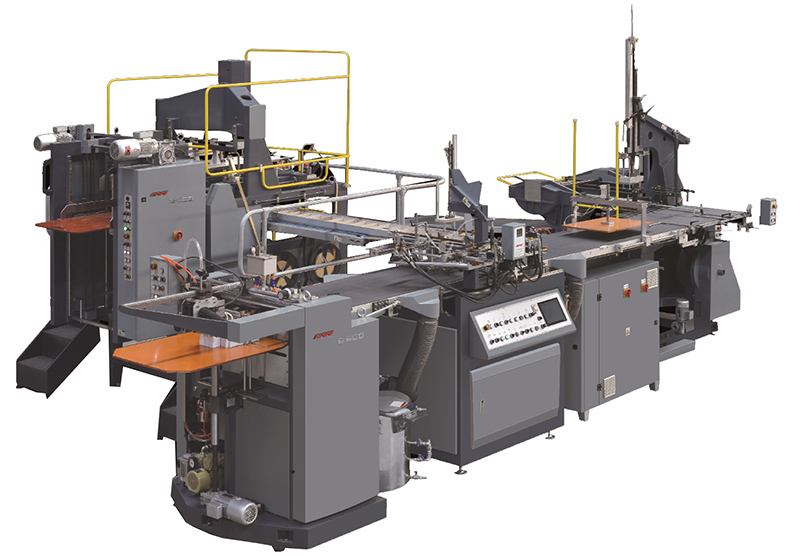

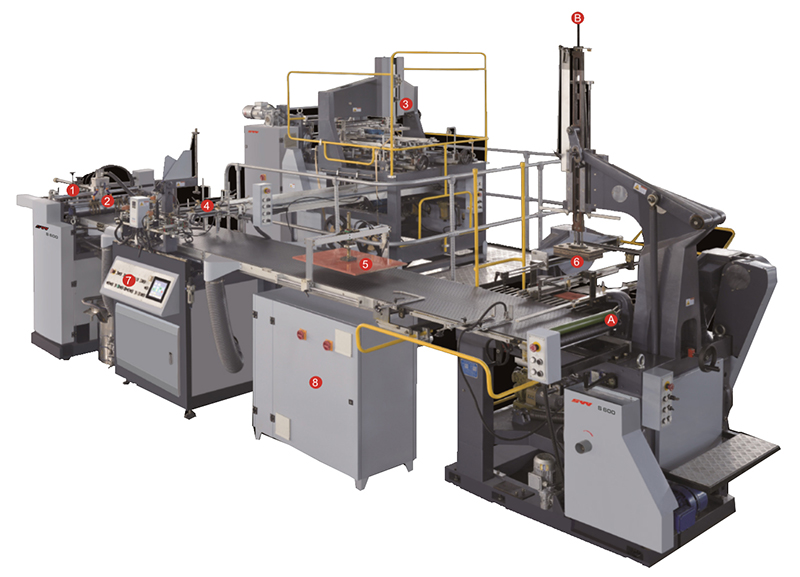

Feeder part: Feeder to achieve automatic delivery for wrap paper and cardboard, suck one sheet per time precisely, keep them no deviation during delivery.
Gluer part: Hot-melting glue system to automatic heating, circulation, mix the glue and precision to control the viscosity of glue, can also automatic wash up gluing tank after finish glue work.
Corner tapping part: Automatic folding cardboard and sticking its four corners by hot melt glue tape, then delivery it to named place of converying belt.
Spotter part: The hydraulic pneumatic spotter device combine with precision photoelectric detecting switch can to correcting and keep right positioning the sticked cardboard box on glued wrap paper.
Press part: The square press tooling can compact each conveying box that under its range, make the touch surface between wrap paper and cardboard more neat and smooth, expel air bubbles.
Box forming parts: Can continuous feeding, folding box, turn in box, box wrapped with one time finish.
Control panel: The convenient control panel equipped with sensitive touch screen-HMI system can freely transform between English and Chinese, make each operate turn to easy.
PLC Part: This machine adopts the advanced PLC, it can precision control and realize the details operation of automatic rigid box production process.
Parameters
Parameters
S 600
S 600A
Sheet size (A×B)
A min. Amax. B min. B max.
95mm 610mm 180mm 850mm
95mm 610mm 180mm 850mm
Cardboard size (C×D )
C D
600mm 800mm
600mm 800mm
Sheet thickness
100-200g/m2
100-200g/m2
Cardboard thickness
T
0.8-3mm
0.8-3mm
Finished box size (W ×L×H )
Wmin. Wmax. L min. L max. H min. H max.
50mm 400mm 100mm 600mm 15mm 150mm
50mm 400mm 100mm 600mm 15mm 150mm
Edge folding depth
R min. R max.
7mm 35mm
7mm 60mm
Fold ear depth
R min. R max.
10mm 125mm
10mm 125mm
Positioning accuracy
± 0.5mm
± 0.5mm
Production speed
≦35 sheets/min
≦35 sheets/min
Sheet stacking height
300mm
300mm
Cardboard stacking height
1000 mm
1000 mm
Electrical power
16kw/380V/3 phases
16kw/380V/3 phases
Glue barrel capacity
60L
60L
Air supply
12L/min. 0.6Mpa
12L/min. 0.6Mpa
Machine weight
6800kg
6800kg
Machine dimension
L6600×W 4100×H 3250mm
L6600×W 4100×H 3250mm
Remark
1.The max and min size of the boxes are affect by those size of material and quality of material.
2.The detail production speed of this machine depend on several factors: raw materials, glue and the operator's skill.

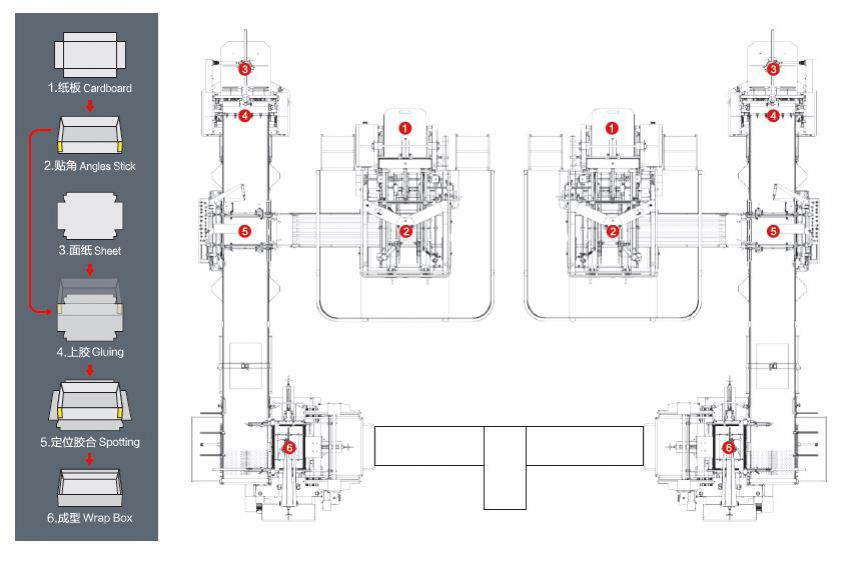

Process

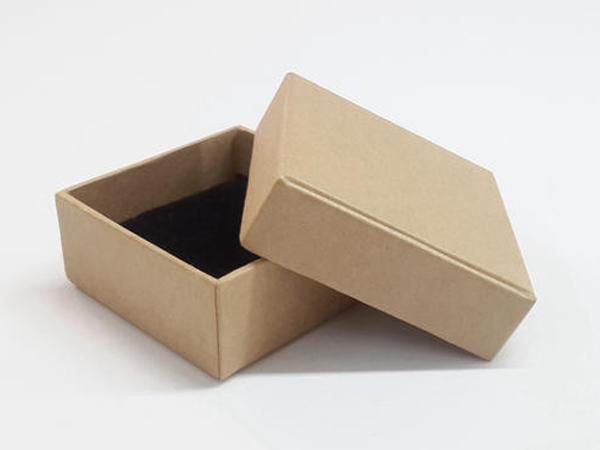

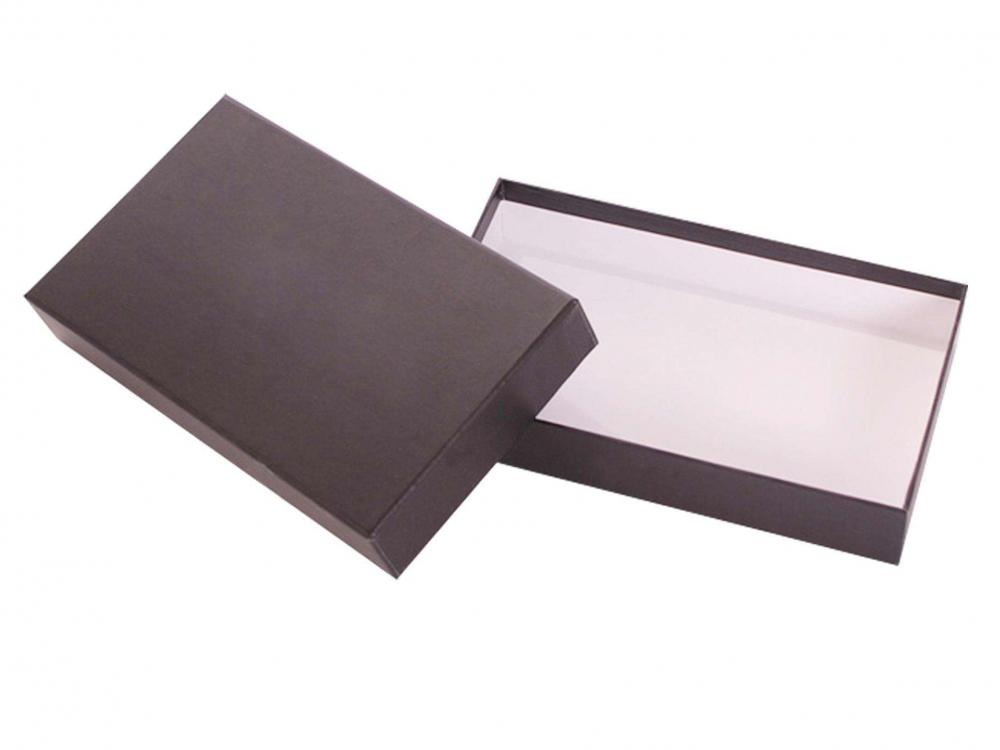

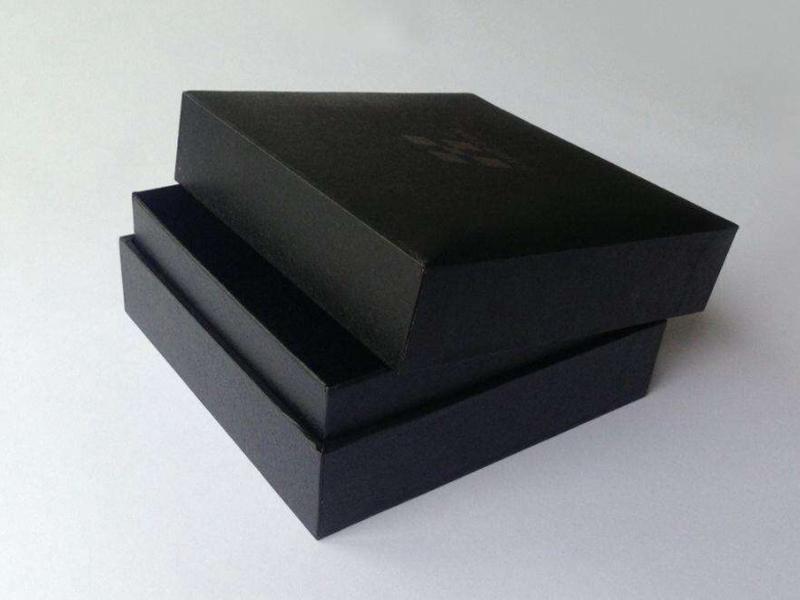

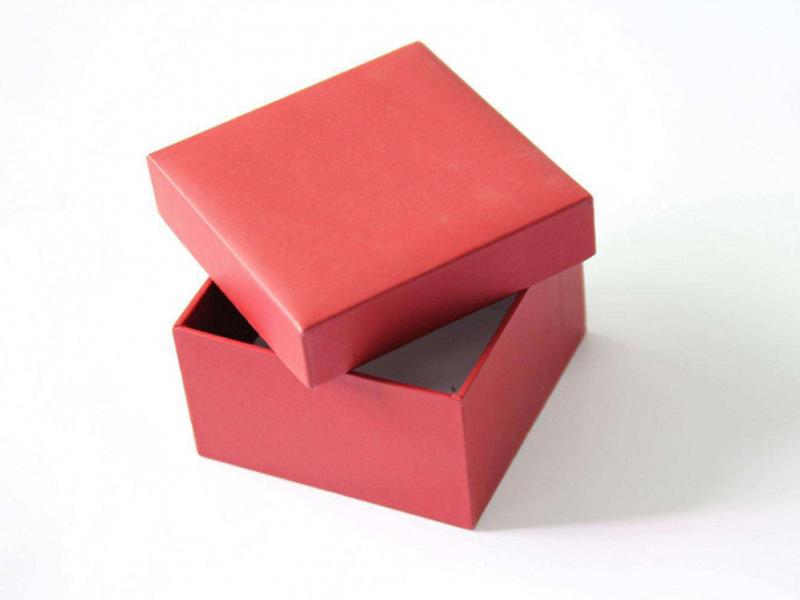

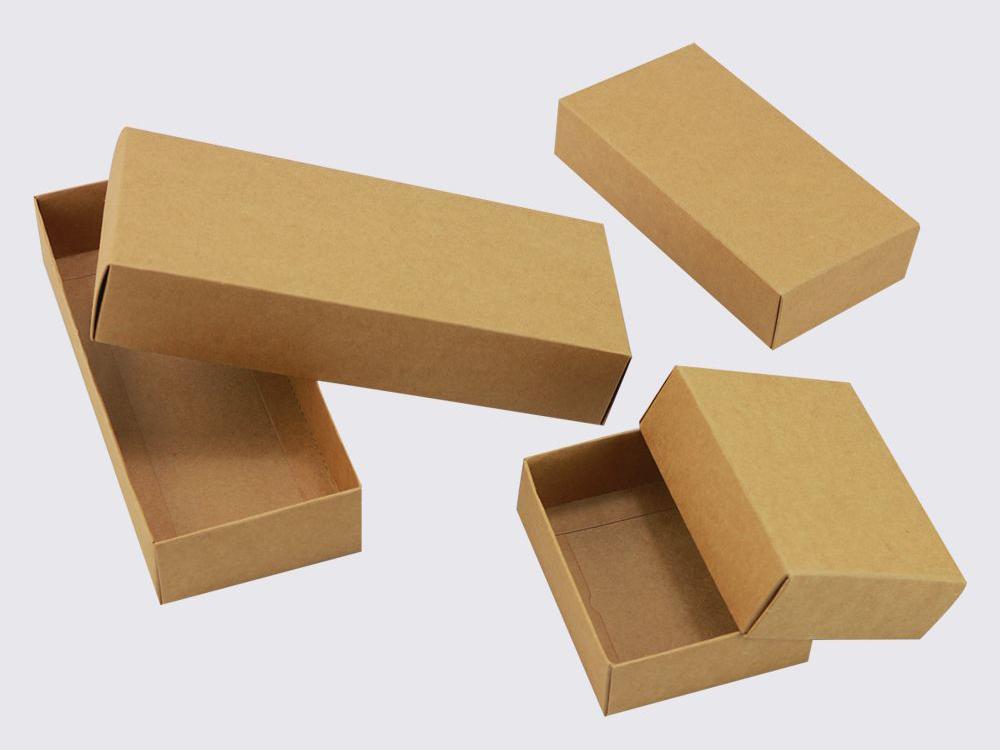

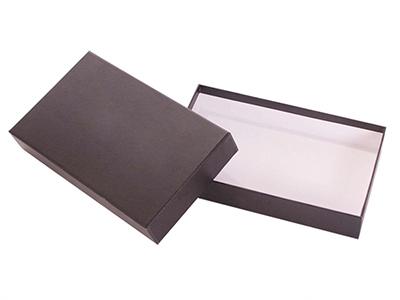

Samples
