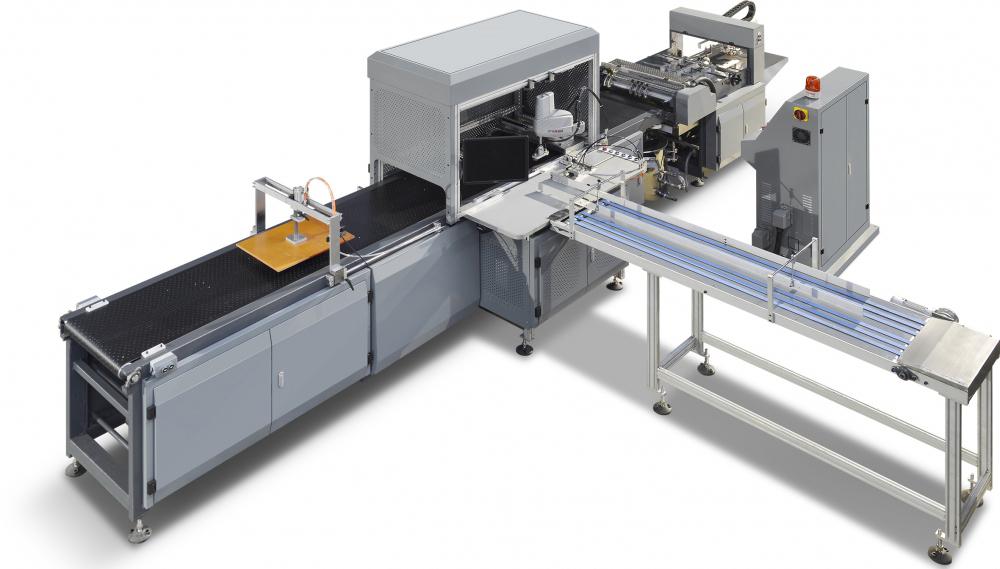

This machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, IPad, Jewelry gift, makeup, etc. It can work with Rigid Box Molding & Folding Machine according to requirement of the boxes.
Parameters | S 460Y | S 600Y |
Sheet size (A×B) | A min. 100mm A max. 460mm B min. 190mm B max. 830mm | A min .100mm A max. 600mm B min. 190mm B max. 1030mm |
Sheet thickness | 100-200g/m2 | 100-200g/m2 |
Finished box size (L×W×H) | Max. 320; min. 100 Max. 240; min. 50 Max .125; min. 15 | Max. 420; min. 100 Max. 320; min. 50 Max. 150; min. 15 |
Positioning accuracy | ±0.1mm | ±0.1mm |
Production speed | ≤30 sheets/min | ≤30 sheets/min |
Motor power | 6.65kw | 6.65kw |
Heater power | 6kw | 6kw |
Machine weight | 1300kg | 1500kg |
Machine dimension | L7200×W3500×H2100mm | L7600×W3500×H2100mm |
Xinwei Machinery is a professional company designs and manufactures rigid box machinery and bookbinding machinery. Since the year of foundation in 2002, we have been dedicated in developing gift box making machine and book cover making machine. Currently, Xinwei is able to fully customize rigid box equipment mainly aimed at companies that need to batch production of set up boxes, clamshell boxes, cigar style boxes and other specific needs for shoe box, board game box, electronics box etc. Besides, our hardcover production line is also available to fulfil your need of manufacturing photo book, children book or more hardcover books throughout the processes of cardboard stitching, grooving, hardcover pressing and creasing etc. Xinwei is an ideal rigid box maker supplier to turn your vision into a compliant project.
