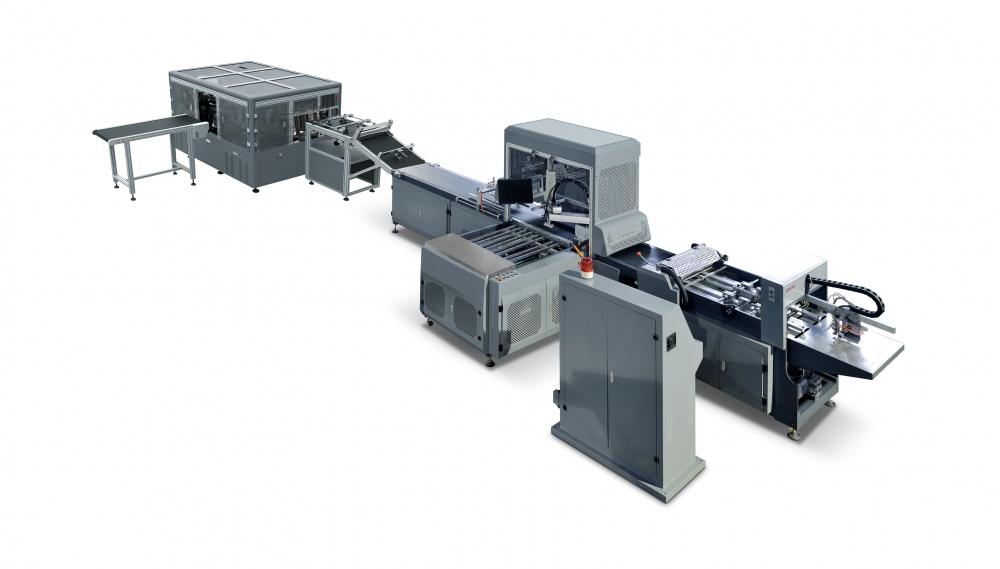

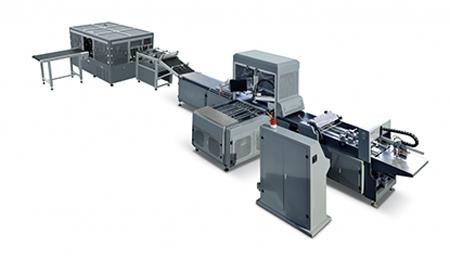

QJH 460Y Automatic Wine Box Making Machine
Rigid box line, rigid box plant

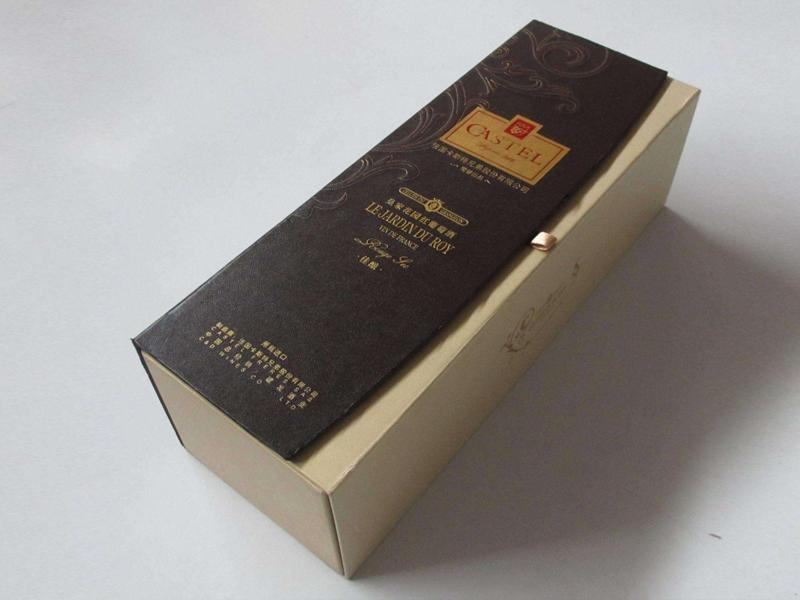

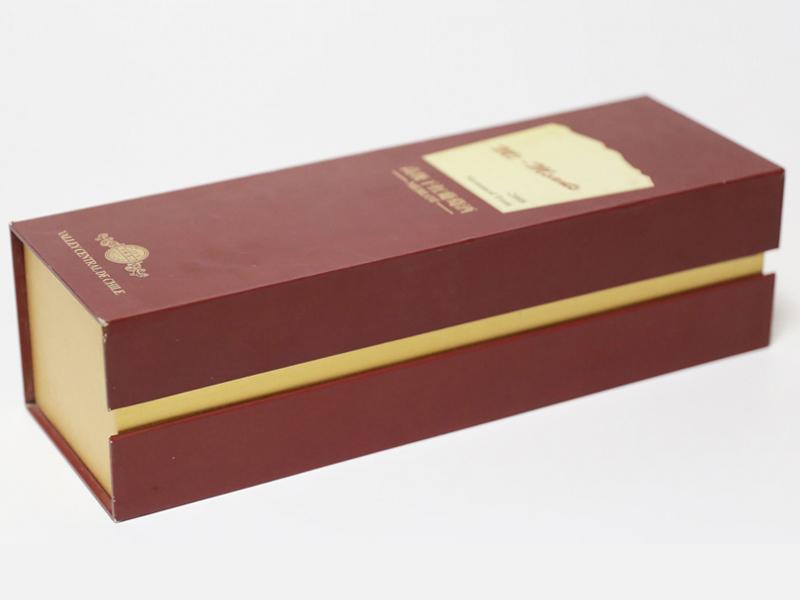

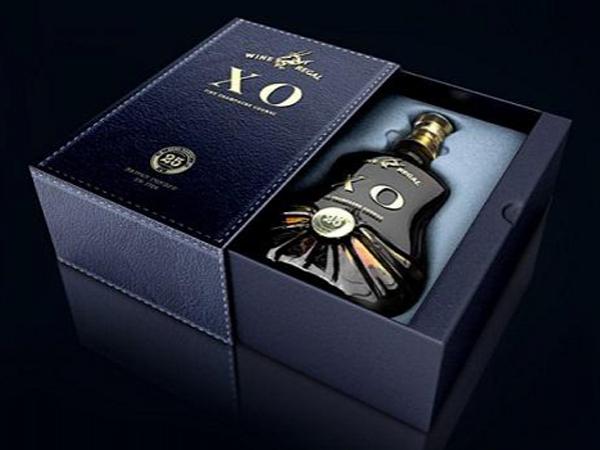

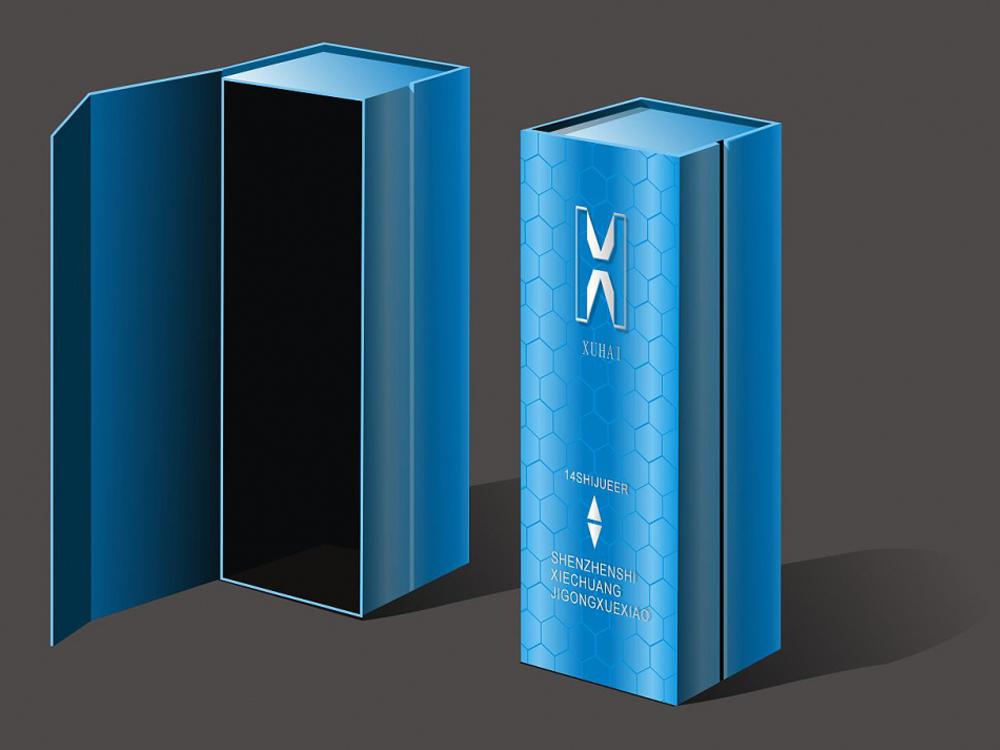

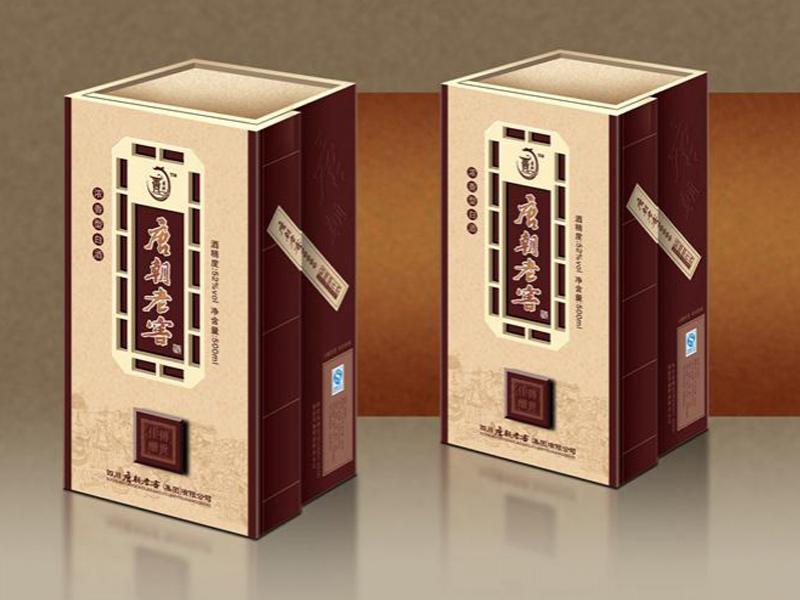

Adopt the PLC servo control system imported from Japan, and the servo cam mechanical structure completes? the main actions. Cam advantages: stability, high efficiency, small vibration, small noise, long service life. This machine is mainly suitable for the forming method of some deep-barrel fine gift box. Compared with the traditional manual molding process, it can save 8-10 manual workers. Gift box made by mechanical forming method overcomes the disadvantage of manual production, of which the product quality is not equal, and it can greatly improve the work efficiency. The machine can flexibly connect manual line, automatic alignment line and visual alignment line. Customers must pay attention in advance whether? the parallel degree of paper board V-slot and cardboard card position are? standard overall structure? or not. These two points are the most critical details in the machine operation, so as to avoid defective rate.
Machine main features: We adopt unique design, and it is no need to replace the mold, which greatly improves? the time for mold change and mold cost.
| Min. product size | 80×80×160mm |
| Max. product size | 160×160×320mm 2.5seconds/pcs as the fastest, |
| Speed | 2.5seconds/pcs as the fastest, 1000-1400pcs per hour |
| Voltage | 380v |
| Air pressure | 6kg |
| Machine weight | 2.5t |
| Machine dimension | L2610×W1970×H1630mm |
