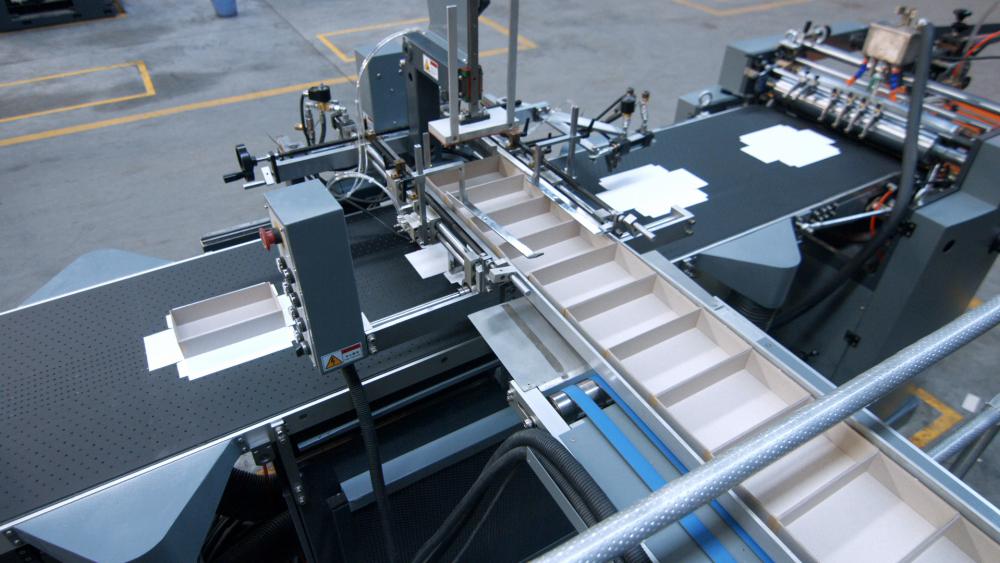

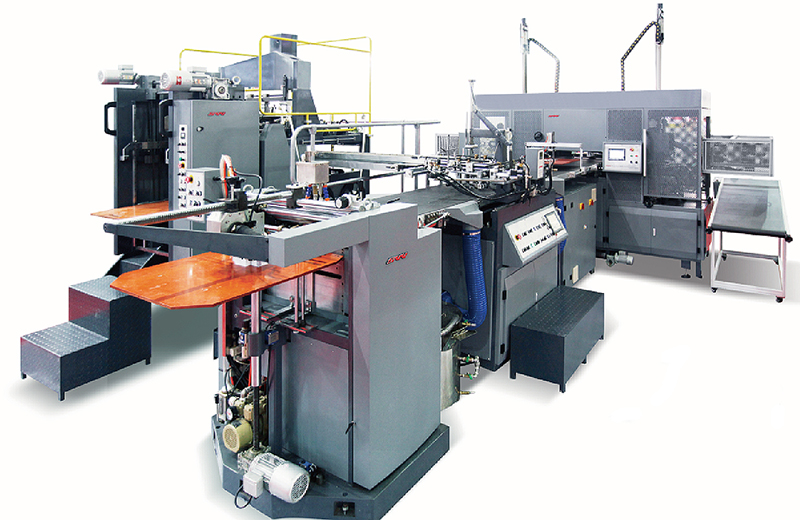

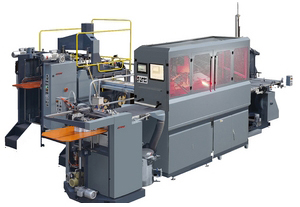

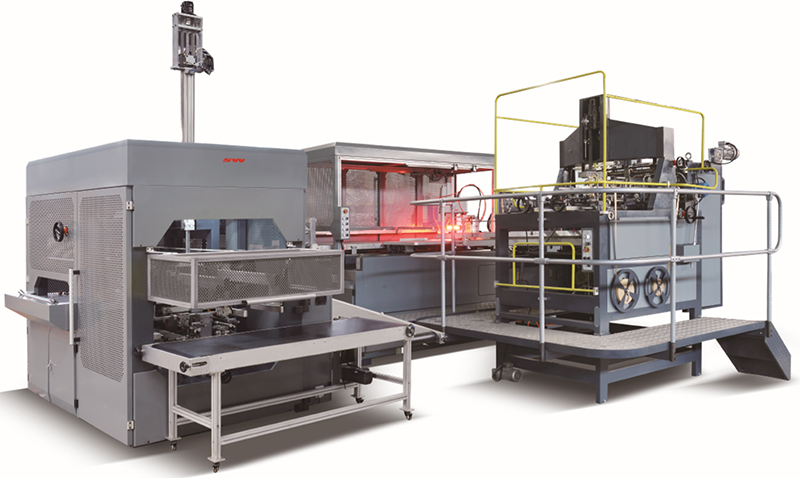

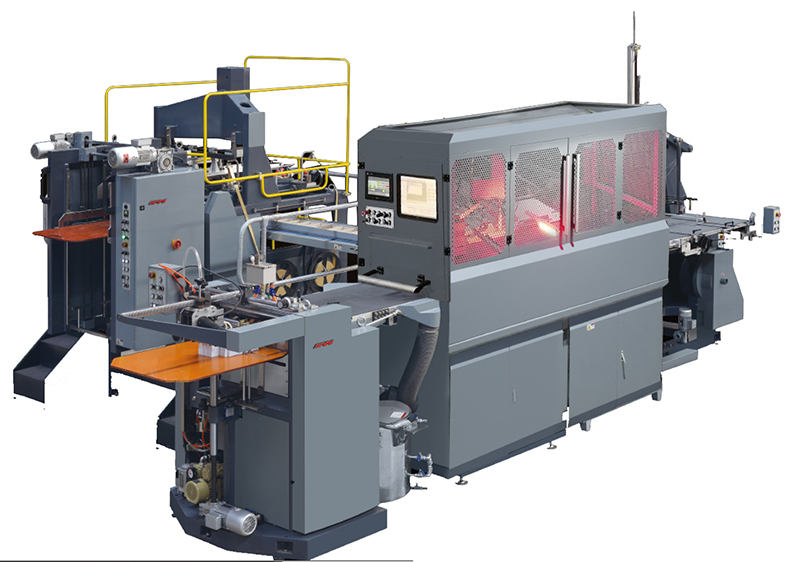

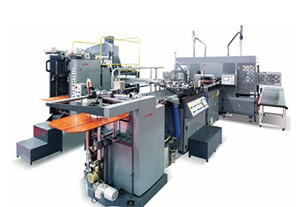

Fully automatic rigid box making machine is the best equipment to make top grade rigid box. Reasonable design and credible performance. It consists of feeder part, corner pasting part, gluing part, positioning part and wrapping part. The machine adopts advanced programmable logic controller, photoelectric tracking system, accurate hydraulic pneumatic deviation correcting system, and convenient touch screen human machine interface (Chinese and English operating panel), etc. to achieve automatic cardboard and paper delivery, four corners pasting, paper gluing, auto conveyance, positioning, pressing, automatic box drawing and catching, wrapping and all the work done consecutively just in one time to achieve high speed production. It achieves fully automatic production via on-line operation of machinery, hydraulic, pneumatic and electronics systems, and so on. Increased production efficiency many times, innovated the conventional rigid paper box production, more than 30 times production efficiency was improved compared with traditional technology. This machine is widely used to making shoes box, shirt box, jewelry box, gift box, and other luxurious paper boxes.
Features
Hot Melt automatic cycle, mixing, automatic viscosity-control series
The glue coating is evenly, thickness adopt mechanical tuning mechanism

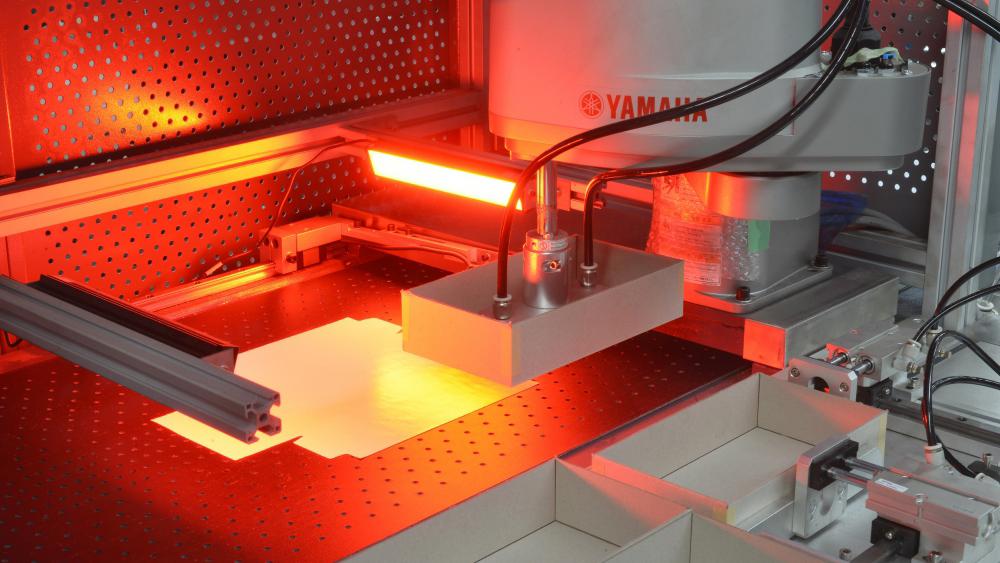

Automatic correction using photoelectric hydraulic pneumatic mechanism, enables improved precision

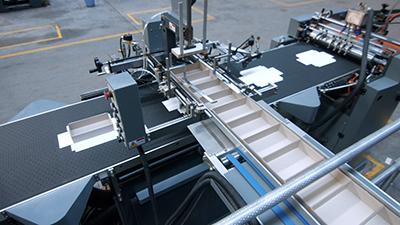

Automatic collect box forming part adopt Guide rod, improved the precision.

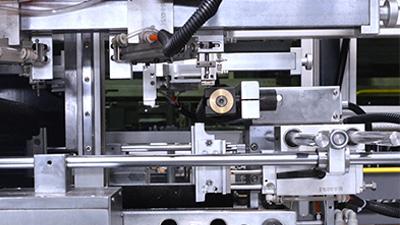

Forming and folding mechanism adopts mechanical and electrical pneumatic to solve the whole folding ear, middle folding ear.
Forming and folding mechanism adopt mechanical and pneumatic together to achieve full fold into the high-end 100mm
After box forming, changing the mechanical mechanism to achieve twice bubble pressing.
Parameters
Parameters
S 460Y Box maker
S 240YS Box maker
S 600Y Box maker
Sheet size (A×B)
Min. 95×180mm Max. 610×850mm
Min. 95×180mm Max. 610×850mm
Min. 95×180mm Max. 610×850mm
Cardboard size (C×D)
600×800mm
600×800mm
600×800mm
Cardboard thickness
T 0.8-3mm
T 0.8-3mm
T 0.8-3mm
Box size (W ×L×H)
W min.
60mm
60mm
60mm
W max.
320mm
320mm
400mm
L min.
100mm
100mm
100mm
L max.
420mm
420mm
600mm
H min.
15mm
15mm
15mm
H max.
125mm
125mm
150mm
Edge folding depth
R min. 7mm R max. 90mm
R min. 7mm R max. 90mm
R min. 7mm R max. 35mm
Size of folding ear
R min. 10mm R max. 125mm
R min. 10mm R max. 125mm
R min. 10mm R max. 125mm
Positioning accuracy
± 0.1m m
± 0.1m m
± 0.1m m
Production speed
≦ 18 boxes/min
≦ 30 boxes/min
≦ 35 boxes/min
Sheet stacking height
300mm
300mm
300mm
Cardboard stacking height
1000mm
1000mm
1000mm
Power
18kw /380V/3phases
18kw/380V/3phases
18kw /380V/3phases
Glue barrel capacity
60L
60L
60L
Air supply
12L/min. 0.6Mpa
12L/min. 0.6Mpa
12L/min. 0.6Mpa
Machine weight
6800kg
6800kg
6800kg
Machine dimensions
L 6600×W 5800×H 3250mm
L 6600×W 5800×H 3250mm
L 6600×W 5800×H 3250mm
Remark
1.The max and min size of the boxes are affect by those size of material and quality of material.
2.The detail production speed of this machine depend on several factors: raw materials, glue and the operator's skill.

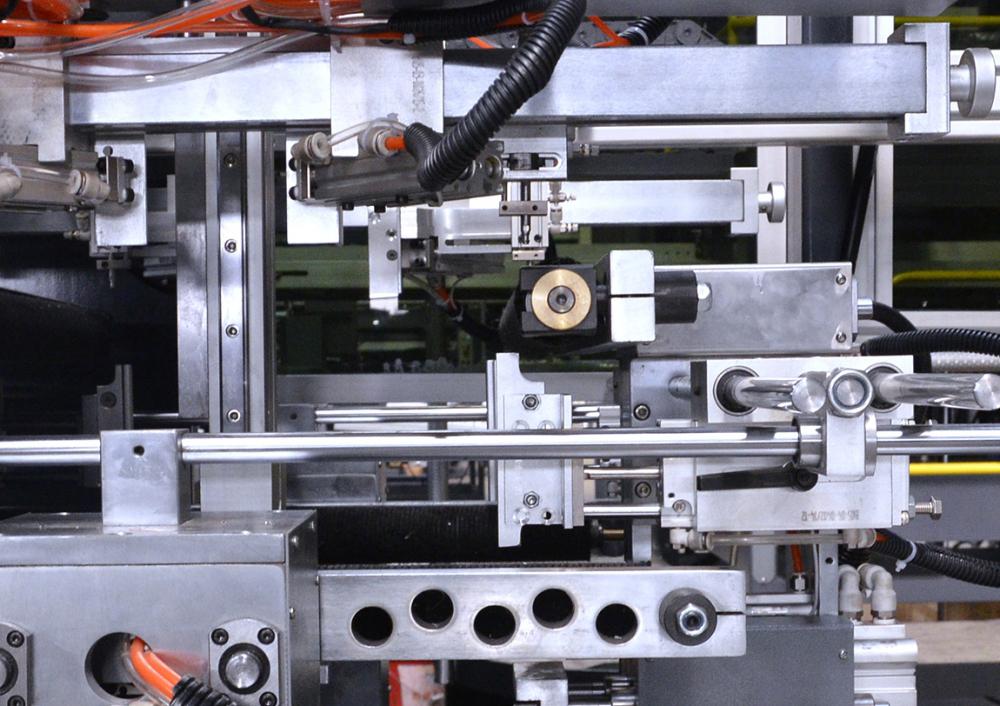

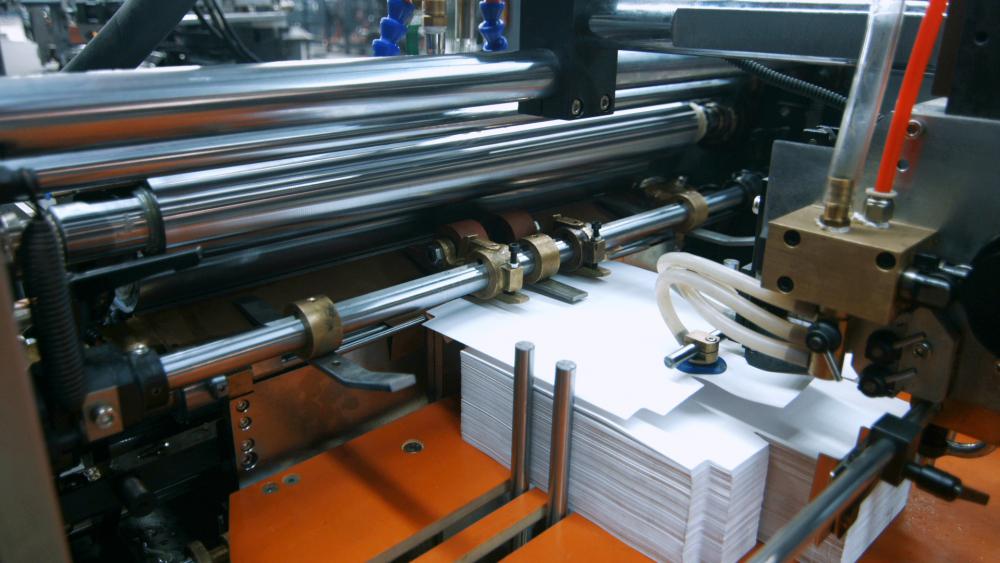

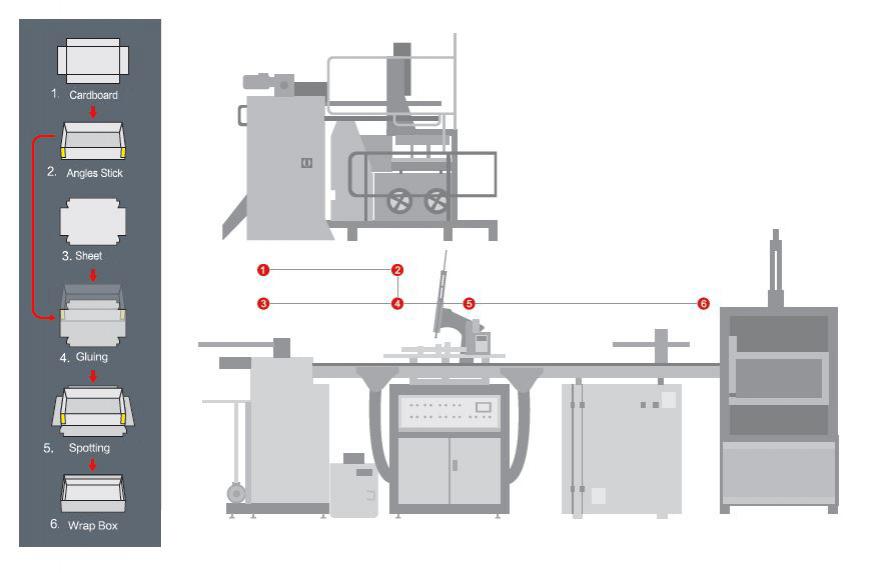

Process
Samples
