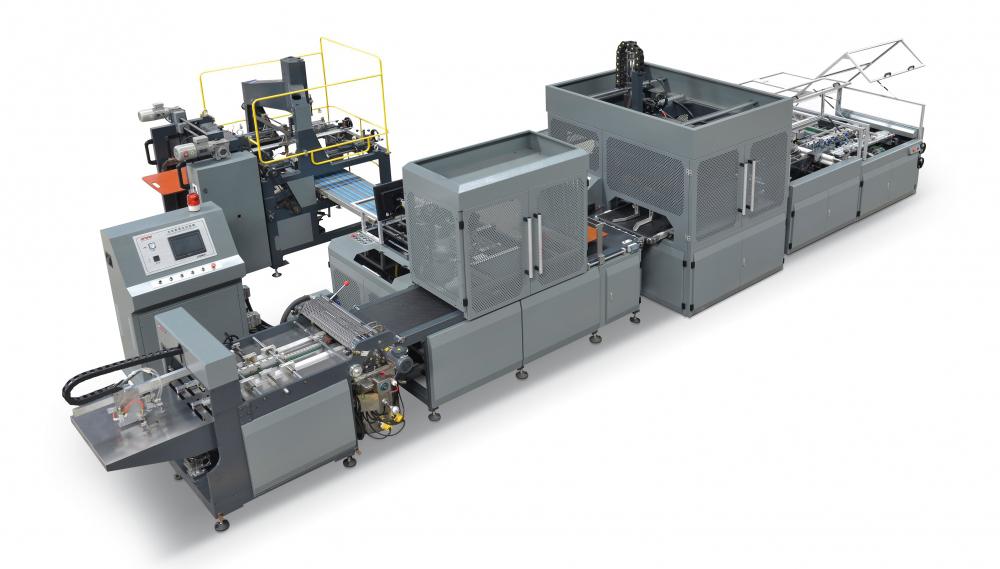

Case maker unit
Sheet length | 190-1030mm |
Sheet width | 130-600mm |
Sheet thickness | 80~200g/m2 |
Cardboard thickness | 1-3mm |
Min. width of spine | 8mm |
Speed | 0-30pcs/min |
Power | 13kw |
Machine weight | 4000kg |
Machine dimension | L11000×W5000×H2800mm |
Box wrapper unit
Box size | Max. | Min. |
420mm | 100mm | |
320mm | 50mm | |
150mm | 15mm | |
Sheet thickness | 80-200g | |
Cardboard thickness | 1.5-3mm | |
Fold ear depth | 125mm | |
Edge folding depth | 100mm | 20mm |
Positioning accuracy | ± 0.3mm | ± 0.1mm |
Production speed | ≦20 sheets/min |

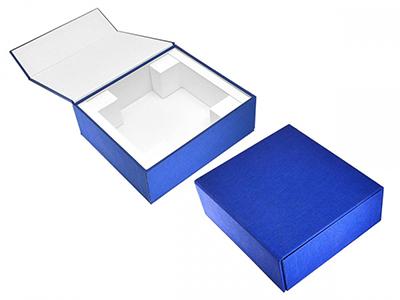

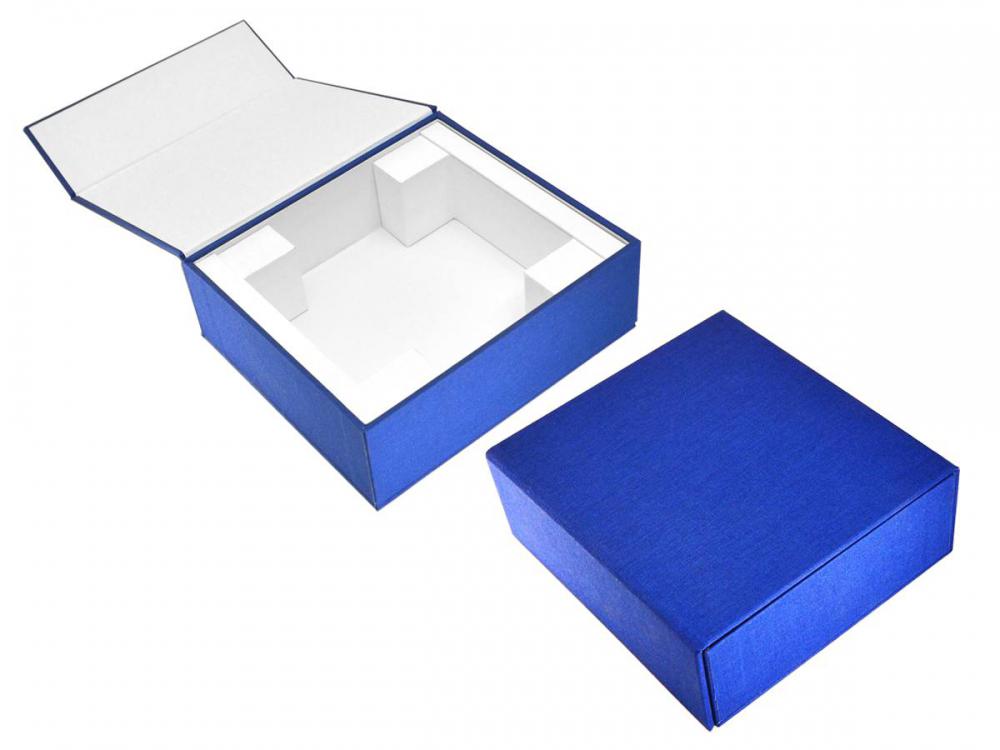

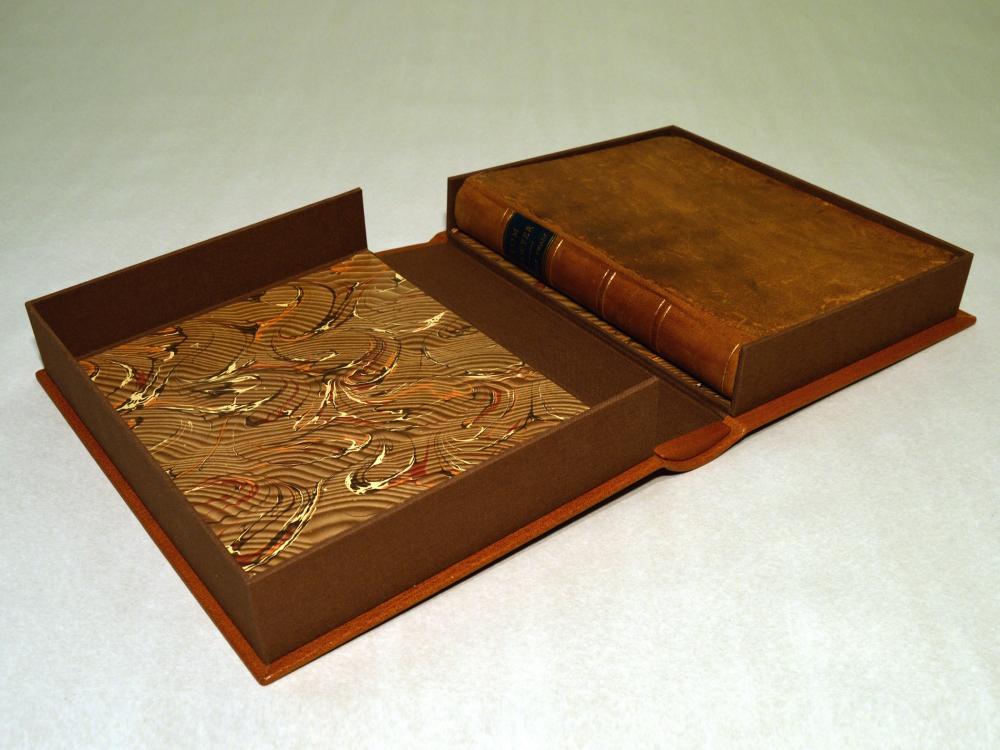

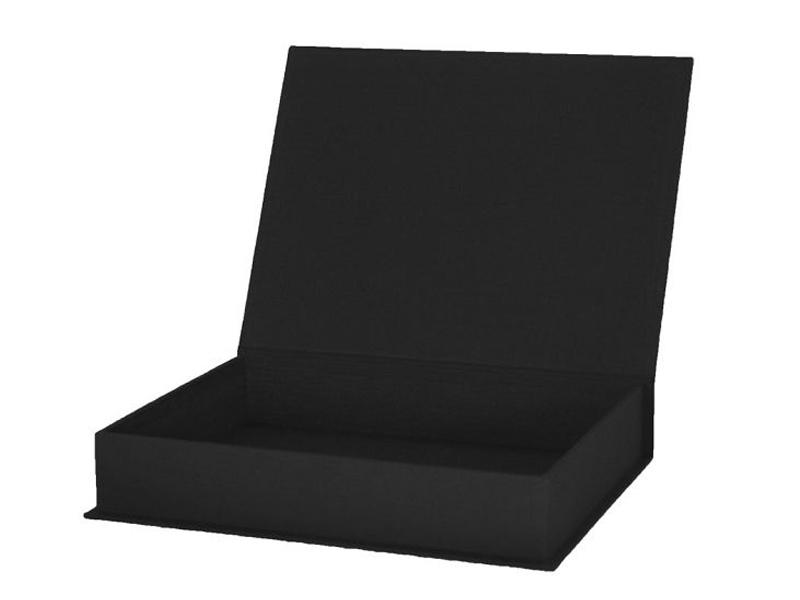

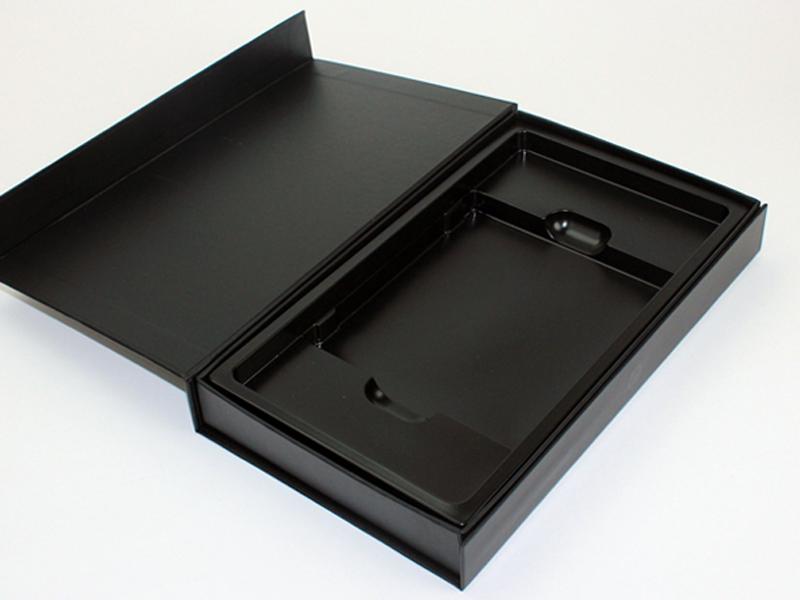

Xinwei Machinery is a professional company designs and manufactures rigid box machinery and bookbinding machinery. Since the year of foundation in 2002, we have been dedicated in developing gift box making machine and book cover making machine. Currently, Xinwei is able to fully customize rigid box equipment mainly aimed at companies that need to batch production of set up boxes, clamshell boxes, cigar style boxes and other specific needs for shoe box, board game box, electronics box etc. Besides, our hardcover production line is also available to fulfil your need of manufacturing photo book, children book or more hardcover books throughout the processes of cardboard stitching, grooving, hardcover pressing and creasing etc. Xinwei is an ideal rigid box maker supplier to turn your vision into a compliant project.
