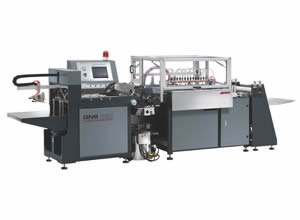

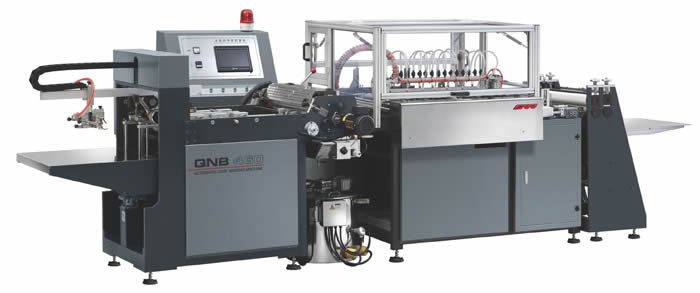

Automatic Book Cover Making and Lining Machine

The QNB-460/600 automatic book cover making and lining machine uses automatic paper feeder, which adopts push back paper feeding structure and is servo and pneumatically controlled. Cardboard positioning machine with automatic error correction function is utilized. Equipped with auto gluing machine and folding machine, the equipment can provide high quality products with high efficiency. Moreover, the Omron PLC intelligent control system ensures automatic fault detection and facilitates debugging, which lowers the waste of raw material.

Features
1. The book cover case making and lining machine offers a high level of automation, which helps reduce labor intensity.
2. Air suction device can avoid air bubbles and paper is protected from bending with automatic leveling device.
3. The automatic lifting platform helps to get ordered products.
4. The intelligent touch screen greatly facilitates the operation.

Technical Parameters
Model QNB-460 QNB-600
Length of paper 230-830 mm 230-1030 mm
Width of paper 140-480 mm 160-600 mm
Thickness of paper 80-200 g 80-200 g
Thickness of cardboard 1-3 mm 1-3 mm
Speed 0~30 pcs/min. 0~25 pcs/min.
Power 16 kW 17 kW
Weight 2000 kg 2200 kg
Dimension L4900XW2150XH1500 mm L6800XW2600XH1500 mm

As an experienced automatic book cover making and lining machine manufacturer in China, XINWEI MACHINERY provides a wide range of products that includes hardcover pressing machine, square book back making machine, rigid box forming machine and more.
