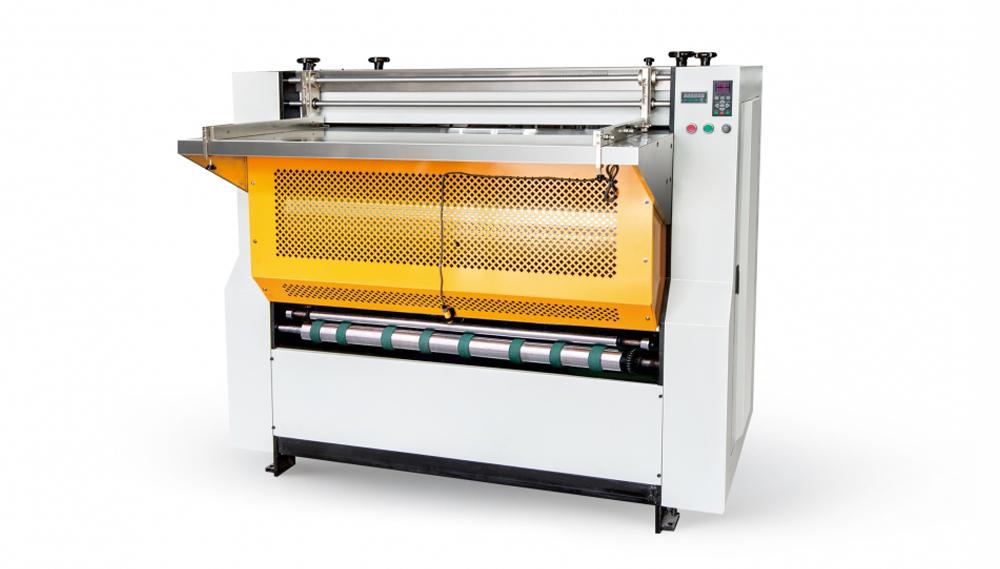

The machine is special designed for make V and U type groove, use for industry-cardboard, Hardboard, Cardboard, plywood, grey board, copper printing paper, coated art paper, chrome paper, Ash-cardboard, MDF board and other several of cardboard. It is suitable for make many types of boxes.
The machine has high accuracy, little noise, highly effective, energy conservation, environmental protection.
Width of processing board | 100-890mm |
Length of processing board | 100-950mm |
Distance of each groove | 0-830mm |
Board thickness | 300gsm-3.4mm |
Grooving degree | 80-140°, adjustable |
Grooving number | 9 pieces one time |
Grooving speed | 10-35m/min |
Machine dimension(L×W×H) | 1500×1400×1600mm |
Machine weight | 1100kg |
Xinwei Machinery is a professional company designs and manufactures rigid box machinery and bookbinding machinery. Since the year of foundation in 2002, we have been dedicated in developing gift box making machine and book cover making machine. Currently, Xinwei is able to fully customize rigid box equipment mainly aimed at companies that need to batch production of set up boxes, clamshell boxes, cigar style boxes and other specific needs for shoe box, board game box, electronics box etc. Besides, our hardcover production line is also available to fulfil your need of manufacturing photo book, children book or more hardcover books throughout the processes of cardboard stitching, grooving, hardcover pressing and creasing etc. Xinwei is an ideal rigid box maker supplier to turn your vision into a compliant project.
