Calendar and Notebook Double Wire Binding Machine

Home » Products » Calendar, Notebook Making Machine » Calendar and Notebook Double Wire Binding Machine

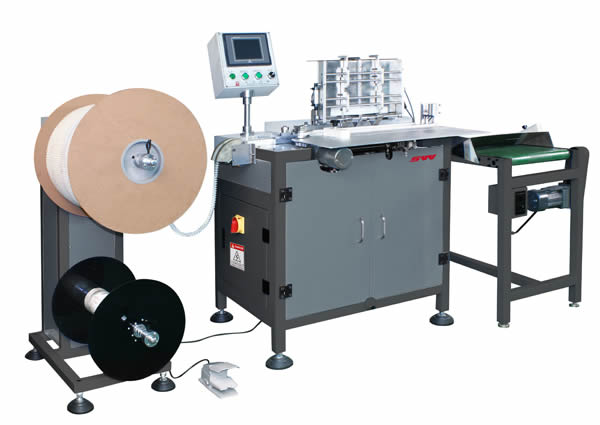

Calendar and Notebook Double Wire Binding Machine

The calendar and notebook double wire binding machine adopts Siemens PLC and touch screen control, which is simple to operate. It accommodates wires from 1/4'' to 3/4'' and can complete the wire binding of 20 books per minute.

Technical Parameters
Feeding ModeManual
Handling of Double Wire Automatic cutting, insertion and closing
Wire Specifications Diameter 1/4''-3/4'' Pitch 3:1 2:1
Max. Paper Width 520 mm
Max. Binding Width 507 mm
Min. Paper Length 75 mm
Working Speed 1,200-1,500 times/hour
Size of Worktable (WXD) 600 × 300 mm
Power supply 220V/1P/50Hz
Air Compressor (not included) 1.5 kW
Air Pressure 6-8
Machine Dimensions (W × D × H) 1,030 × 770 × 1,200 mm
Net Weight (excl. power pack) 220 kg
Dimension of Pay-off Unit (W × D × H) 490 × 760 × 1,20020 mm
Weight of Pay-off Unit 65 kg

As a China-based calendar and notebook double wire binding machine manufacturer and supplier, XINWEI MACHINERY also offers hardcover pressing machine, automatic paper gluing machine, book packing machine, and book casing-in machine, among others.
