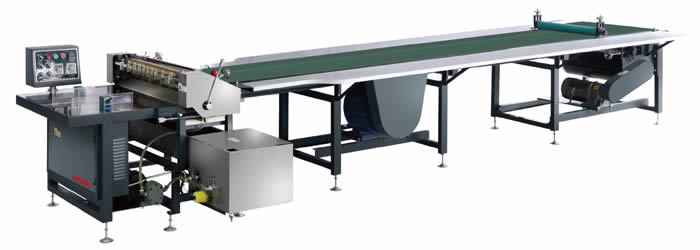

Manual Feeding Paper Gluing Machine
The manual feeding paper gluing machine is usually used in making file box, folder, dress box, shoe box, gift case, and book case, etc. It has high efficiency and wide adaptability. No matter it is hot melt glue, bone glue, hydrogel, rice glue, or latex, the machine can easily handle it. In addition to be used independently, the gluing equipment can also be used in combination with other machines to form various production lines.
The paper gluing machine is featured with variable frequency control and stainless steel roller which is wear resistant and deformation resistant. High paper feeding accuracy is achieved due to the adoption of rubber wheel friction feeding. With indirect heating temperature control system, the backflow rubber trough will not be stuck with glue under low temperature environment.
| Model | SSJ-650C | SSJ-750C | SSJ-850C |
| Sheet thickness | 80-200g | 80-200g | 80-200g |
| Sheet cover width | 600MM | 700MM | 800MM |
| Sheet cover length | 2000MM | 2000MM | 2000MM |
| Production speed | 0-40unis/min | 0-40unis/min | 0-40unis/min |
| Power | 8KW/380V | 8KW/380V | 8KW/380V |
| Molding Size | 5500×1350×1250 | 5500×1450×1250 | 5500×1450×1250 |
| Weight of Machine | 600kg | 750kg | 800kg |
The manual feeding paper gluing machine offers many great features:
1. It uses magnetic suction side board to fix paper pile.
2. The adjustable gluing roller ensures uniform gluing result.
3. The circular trough, along with temperature control system, helps maintain the appropriate viscosity of glue.
4. The use of induced draft system results in the paper steadily sticking to the conveyer belt.
5. The built-in cleaning system makes it possible to complete cleaning in five minutes.
XINWEI MACHINERY is a China manual feeding paper gluing machine manufacturer. We provide various types of products such as adjustable speed gluing machine, automatic book cover making and lining machine, and calendar punching machine.
